Application with new data

This tutorial demonstrates how to spatial data integration on new MERFISH and STARmap mouse visual cortex data using Pysodb and STAGATE based on pyG (PyTorch Geometric) framework.

A reference paper can be found at https://www.nature.com/articles/s41467-022-29439-6.

This tutorial refers to the following tutorial at https://stagate.readthedocs.io/en/latest/AT2.html. At the same time, the way of loadding data is modified by using Pysodb.

Import packages and set configurations

[1]:

# Use the Python warnings module to filter and ignore any warnings that may occur in the program after this point
import warnings
warnings.filterwarnings("ignore")

[2]:

# Import several Python packages commonly used in data analysis and visualization:
# pandas (imported as pd) is a package for data manipulation and analysis
import pandas as pd
# numpy (imported as np) is a package for numerical computing with arrays
import numpy as np
# scanpy (imported as sc) is a package for single-cell RNA sequencing analysis
import scanpy as sc
# matplotlib.pyplot (imported as plt) is a package for data visualization
import matplotlib.pyplot as plt
# Seaborn is a package for statistical data visualization
import seaborn as sns

[3]:

# Import a STAGATE_pyG package
import STAGATE_pyG as STAGATE

If users encounter the error “No module named ‘STAGATE_pyG’” when trying to import STAGATE_pyG package, first ensure that the “STAGATE_pyG” folder is located in the current script’s directory.

[4]:

# Imports a palettable package
import palettable
# Create two variables with lists of colors for categorical visualizations and biotechnology-related visualizations, respectively.
cmp_new = palettable.cartocolors.qualitative.Pastel_10.mpl_colors
cmp_new_biotech = palettable.cartocolors.qualitative.Safe_4.mpl_colors

Streamline development of loading spatial data with Pysodb

[5]:

# Import pysodb package
# Pysodb is a Python package that provides a set of tools for working with SODB databases.
# SODB is a format used to store data in memory-mapped files for efficient access and querying.
# This package allows users to interact with SODB files using Python.
import pysodb

[6]:

# Initialization
sodb = pysodb.SODB()

[7]:

# Load new MERFISH and STARmap mouse visual cortex data

adata_merfish = sodb.load_experiment('Merfish_Visp','mouse_VISp')
adata_STARmap = sodb.load_experiment('Wang2018Three_1k','mouse_brain_STARmap')

adata_merfish.obs['Tech'] = 'MERFISH'
adata_STARmap.obs['Tech'] = 'STARmap'

load experiment[mouse_VISp] in dataset[Merfish_Visp]
load experiment[mouse_brain_STARmap] in dataset[Wang2018Three_1k]

[8]:

adata_list = {
    'MERFISH':adata_merfish,
    'STARmap':adata_STARmap
}

Constructing the spatial network for each secion

[9]:

# Use "STAGATE_pyG.Cal_Spatial_Net" to calculate a spatial graph with a radius cutoff of 50 for adata_list['MERFISH']
STAGATE.Cal_Spatial_Net(adata_list['MERFISH'], rad_cutoff=50)
# Use "STAGATE_pyG.Stats_Spatial_Net" to summarize cells and edges information for adata_list['MERFISH']
STAGATE.Stats_Spatial_Net(adata_list['MERFISH'])

------Calculating spatial graph...
The graph contains 19162 edges, 2399 cells.
7.9875 neighbors per cell on average.

../_images/Spatial_data_integration_Application_with_new_data_14_1.png

[10]:

# Use "STAGATE_pyG.Cal_Spatial_Net" to calculate a spatial graph with a radius cutoff of 50 for adata_list['STARmap']
STAGATE.Cal_Spatial_Net(adata_list['STARmap'], rad_cutoff=400)
# Use "STAGATE_pyG.Stats_Spatial_Net" to summarize cells and edges information for adata_list['STARmap']
STAGATE.Stats_Spatial_Net(adata_list['STARmap'])

------Calculating spatial graph...
The graph contains 6990 edges, 930 cells.
7.5161 neighbors per cell on average.

../_images/Spatial_data_integration_Application_with_new_data_15_1.png

[11]:

# Concatenate 'MERFISH' and 'STARmap' into a single AnnData object named 'adata'
adata = sc.concat([adata_list['MERFISH'], adata_list['STARmap']], keys=None)

[12]:

# Concatenate two 'Spatial_Net'
adata.uns['Spatial_Net'] = pd.concat([adata_list['MERFISH'].uns['Spatial_Net'], adata_list['STARmap'].uns['Spatial_Net']])

[13]:

# Use "STAGATE_pyG.Stats_Spatial_Net" to summarize cells and edges information for whole adata
STAGATE.Stats_Spatial_Net(adata)

../_images/Spatial_data_integration_Application_with_new_data_18_0.png

[14]:

# Normalization
sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)

[15]:

adata

[15]:

AnnData object with n_obs × n_vars = 3329 × 102
    obs: 'leiden', 'Tech'
    var: 'highly_variable', 'highly_variable_rank', 'means', 'variances', 'variances_norm'
    uns: 'Spatial_Net', 'hvg', 'log1p'
    obsm: 'X_pca', 'X_umap', 'spatial'

Running STAGATE

[16]:

adata = STAGATE.train_STAGATE(adata, n_epochs=500)

Size of Input:  (3329, 102)

100%|██████████| 500/500 [00:02<00:00, 201.42it/s]

Spatial Clustering

[17]:

# Calculates neighbors in the 'STAGATE' representation, applies UMAP, and performs louvain clustering
sc.pp.neighbors(adata, use_rep='STAGATE')
sc.tl.umap(adata)
sc.tl.louvain(adata,resolution=0.5)

When encountering the Error “No module named ‘igraph’”, users should activate the virtual environment at the terminal and execute “pip install igraph”.

When encountering the Error “No module named ‘louvain’”, users should activate the virtual environment at the terminal and execute “pip install louvain”.

[18]:

# Plot a UMAP projection
plt.rcParams["figure.figsize"] = (3, 3)
sc.pl.umap(adata, color='Tech', title='Unintegrated',show=False,palette=cmp_new_biotech)
#plt.savefig('figures/new_before_umap.png',dpi=400,transparent=True,bbox_inches='tight')
#plt.savefig('figures/new_before_umap.pdf',dpi=400,transparent=True,bbox_inches='tight')

[18]:

<Axes: title={'center': 'Unintegrated'}, xlabel='UMAP1', ylabel='UMAP2'>

../_images/Spatial_data_integration_Application_with_new_data_26_1.png

[19]:

# Generate a plot of the UMAP embedding colored by louvain
plt.rcParams["figure.figsize"] = (3, 3)

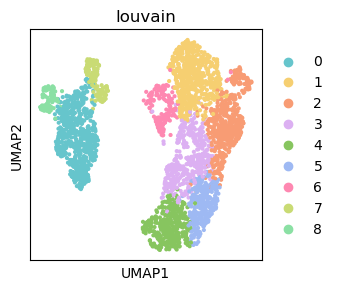

sc.pl.umap(adata, color='louvain',show=False,palette=cmp_new)
#plt.savefig('figures/new_before_umap_leiden.png',dpi=400,transparent=True,bbox_inches='tight')
#plt.savefig('figures/new_before_umap_leiden.pdf',dpi=400,transparent=True,bbox_inches='tight')

[19]:

<Axes: title={'center': 'louvain'}, xlabel='UMAP1', ylabel='UMAP2'>

../_images/Spatial_data_integration_Application_with_new_data_27_1.png

[20]:

# Display spatial distribution of cells colored by louvain clustering for two sequencing technologies ('MERFISH' and 'STARmap')

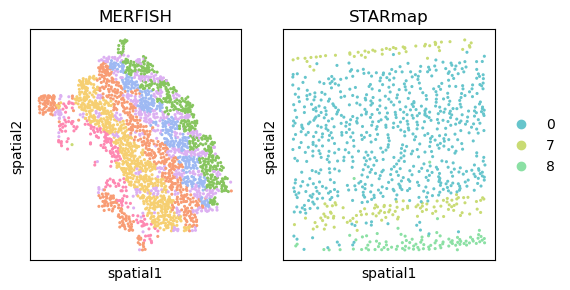

fig, axs = plt.subplots(1, 2, figsize=(6, 3))
it=0
for temp_tech in ['MERFISH', 'STARmap']:
    temp_adata = adata[adata.obs['Tech']==temp_tech, ]
    if it == 1:
        sc.pl.embedding(temp_adata, basis="spatial", color="louvain",s=20, ax=axs[it],
                        show=False, title=temp_tech)
    else:
        sc.pl.embedding(temp_adata, basis="spatial", color="louvain",s=20, ax=axs[it], legend_loc=None,
                        show=False, title=temp_tech)
    it+=1
#plt.savefig('figures/new_before_spatial_leiden0.5.png',dpi=400,transparent=True,bbox_inches='tight')
#plt.savefig('figures/new_before_spatial_leiden0.5.pdf',dpi=400,transparent=True,bbox_inches='tight')

../_images/Spatial_data_integration_Application_with_new_data_28_0.png

Perform Harmony for spatial data intergration

Harmony is an algorithm for integrating multiple high-dimensional datasets It can be employed as a reference at https://github.com/slowkow/harmonypy and https://pypi.org/project/harmonypy/

[21]:

# Import harmonypy package
import harmonypy as hm

[22]:

# Use STAGATE representation to create 'meta_data' for harmony
data_mat = adata.obsm['STAGATE'].copy()
meta_data = adata.obs.copy()

[23]:

# Run harmony for STAGATE representation
ho = hm.run_harmony(data_mat, meta_data, ['Tech'])

2023-04-03 11:47:20,623 - harmonypy - INFO - Computing initial centroids with sklearn.KMeans...
2023-04-03 11:47:21,926 - harmonypy - INFO - sklearn.KMeans initialization complete.
2023-04-03 11:47:21,942 - harmonypy - INFO - Iteration 1 of 10
2023-04-03 11:47:22,342 - harmonypy - INFO - Iteration 2 of 10
2023-04-03 11:47:22,743 - harmonypy - INFO - Iteration 3 of 10
2023-04-03 11:47:23,185 - harmonypy - INFO - Iteration 4 of 10
2023-04-03 11:47:23,580 - harmonypy - INFO - Converged after 4 iterations

[24]:

# Write the adjusted PCs to a new file.
res = pd.DataFrame(ho.Z_corr)
res.columns = adata.obs_names

[25]:

# Create a new AnnData object adata_Harmony using a transpose of the res matrix
adata_Harmony = sc.AnnData(res.T)

[26]:

adata_Harmony.obsm['spatial'] = pd.DataFrame(adata.obsm['spatial'], index=adata.obs_names).loc[adata_Harmony.obs_names,].values
adata_Harmony.obs['Tech'] = adata.obs.loc[adata_Harmony.obs_names, 'Tech']

Spatial Clustering after integration

[27]:

# Calculate neighbors, apply UMAP, and perform leiden clustering for the integrated data
sc.pp.neighbors(adata_Harmony)
sc.tl.umap(adata_Harmony)
sc.tl.leiden(adata_Harmony, resolution=0.3)

When encountering the Error “Please install the leiden algorithm: ‘conda install -c conda-forge leidenalg’ or ‘pip3 install leidenalg’”, users can follow the provided instructions: activate the virtual environment, execute “pip3 install leidenalg”.

[28]:

# Plot a UMAP embedding colored by leiden after integration
plt.rcParams["figure.figsize"] = (3, 3)
sc.pl.umap(adata_Harmony, color='Tech', title='STAGATE + Harmony',show=False,palette=cmp_new_biotech)
#plt.savefig('figures/new_after_umap.png',dpi=400,transparent=True,bbox_inches='tight')
#plt.savefig('figures/new_after_umap.pdf',dpi=400,transparent=True,bbox_inches='tight')

[28]:

<Axes: title={'center': 'STAGATE + Harmony'}, xlabel='UMAP1', ylabel='UMAP2'>

../_images/Spatial_data_integration_Application_with_new_data_40_1.png

[29]:

plt.rcParams["figure.figsize"] = (3, 3)

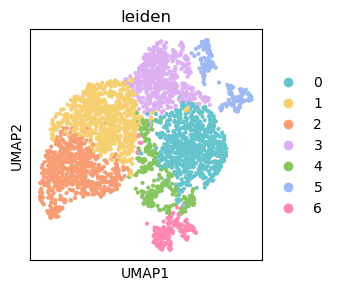

sc.pl.umap(adata_Harmony, color='leiden',show=False,palette=cmp_new)
#plt.savefig('figures/new_after_umap_leiden0.3.png',dpi=400,transparent=True,bbox_inches='tight')
#plt.savefig('figures/new_after_umap_leiden0.3.pdf',dpi=400,transparent=True,bbox_inches='tight')

[29]:

<Axes: title={'center': 'leiden'}, xlabel='UMAP1', ylabel='UMAP2'>

../_images/Spatial_data_integration_Application_with_new_data_41_1.png

[30]:

# Display spatial distribution of cells colored by leiden clustering for two sequencing technologies ('MERFISH' and 'STARmap') after integration
fig, axs = plt.subplots(1, 2, figsize=(6, 3))
it=0
for temp_tech in ['MERFISH', 'STARmap']:
    temp_adata = adata_Harmony[adata_Harmony.obs['Tech']==temp_tech, ]
    if it == 1:
        sc.pl.embedding(temp_adata, basis="spatial", color="leiden",s=20, ax=axs[it],
                        show=False, title=temp_tech)
    else:
        sc.pl.embedding(temp_adata, basis="spatial", color="leiden",s=20, ax=axs[it], legend_loc=None,
                        show=False, title=temp_tech)
    it+=1
#plt.savefig('figures/new_after_spatial_leiden0.3.png',dpi=400,transparent=True,bbox_inches='tight')
#plt.savefig('figures/new_after_spatial_leiden0.3.pdf',dpi=400,transparent=True,bbox_inches='tight')

../_images/Spatial_data_integration_Application_with_new_data_42_0.png
